• Water temperature 120 - 240°F
• Water temperature displayed by analog pointer on a calibrated dial
• Low profile bezel follows the curve of the lens to eliminate water trapping
• Scratch-resistant domed glass lens sheds water
• Fits standard 2" instrument dash mounting hole
• Optional add-on square bezels for modular appearance (sold separately)
• 2-Year limited warranty
• Installation Diameter: 2.13"

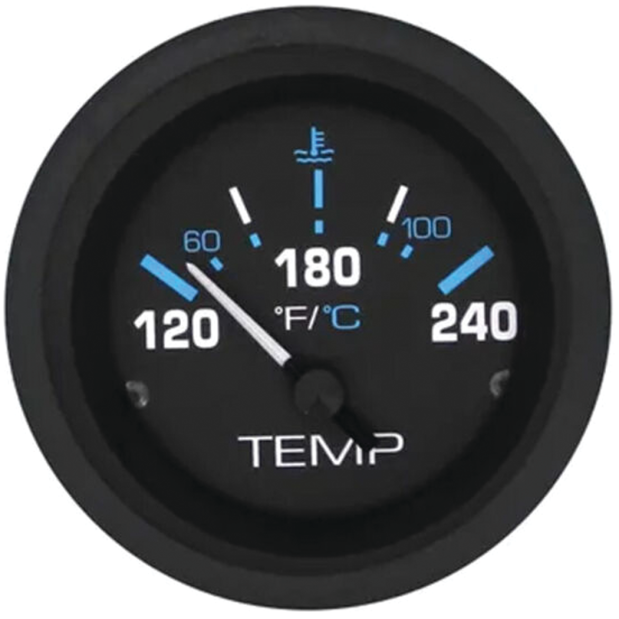

• Dial: Edge-lit black dial with white and blue graphics, black bezel, contoured white analog pointer, and domed scratch-resistant glass lens
• Input Type: Electrical
• Sender (not included / purchase separately): US Code D, 1/8" NPT Single Station (240 Ohm @ 120°F)
• Nominal Voltage: 12 Volt DC
• Current Draw: 0.10 - 0.15 Amp
• Operating Temperature: -40 to +70° C
• Ingress Protection (gauge front): IP65 (Dustproof / protected against jets of water from all directions)
