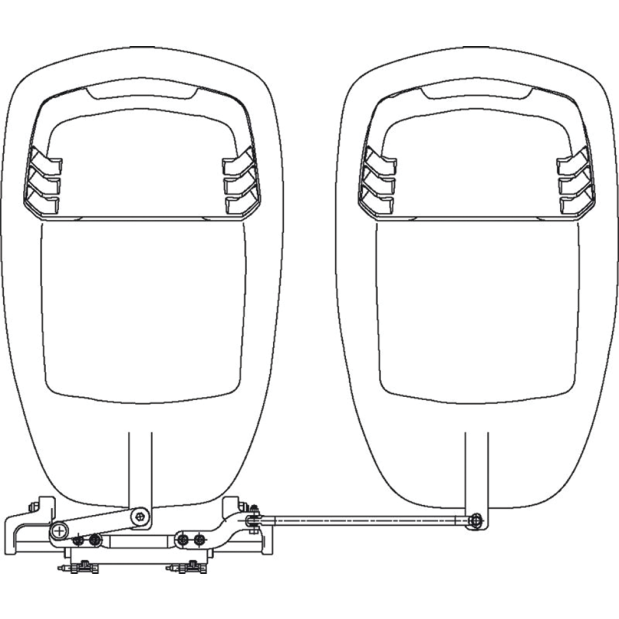

The A94 Tie Bar is suitable for twin engine applications with a Uflex single UC128-OBF (<300 HP) or UC128-SVS (>300 HP) front mount cylinder. (NOTE: In applications with dual cylinders, or over 500 combined horsepower, use the A90 tie bar; see Related Products, below.)

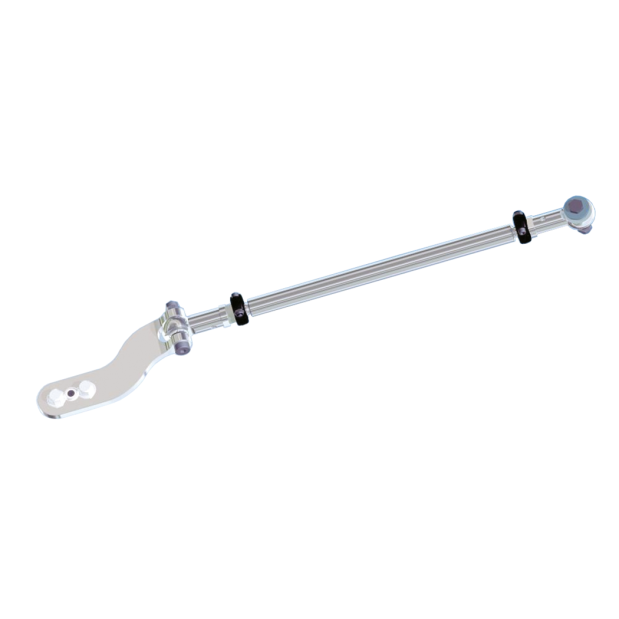

The A94 Tie Rod has a threaded bar inside a sleeve, and is adjustable for engine centers from 26" (660mm) to 37.4" (950mm). This is the most popular version of the A94.
Where the ultimate strength of a solid rod tie bar is required, the A94 tie bar is availble in half a dozen non-adjustable fixed length versions by special order. Inquire at 800-426-6930.
• Allows the engines to be tilted independently
• Stainless steel components
• Electropolished stainless steel ball joints
Not recommended for applications exceeding 500 HP (combined engines). Applications above 500 combined horsepower require dual cylinders.
Click here for a list of appropriate engines for using the A94 Tie Bar.
ATTENTION: As the tiller arm position varies from engine to engine and the distance between two engines is not predictable, unexpected interferences may occur while tilting.
We recommend that, after the tie bar installation, you carefully check for binding when both engines are tilted, or when one is tilted but the other is not (say, in the case of one engine breaking down.
Should you need additional information, please contact U-Flex Technical Help Service at 941-351-2628.
