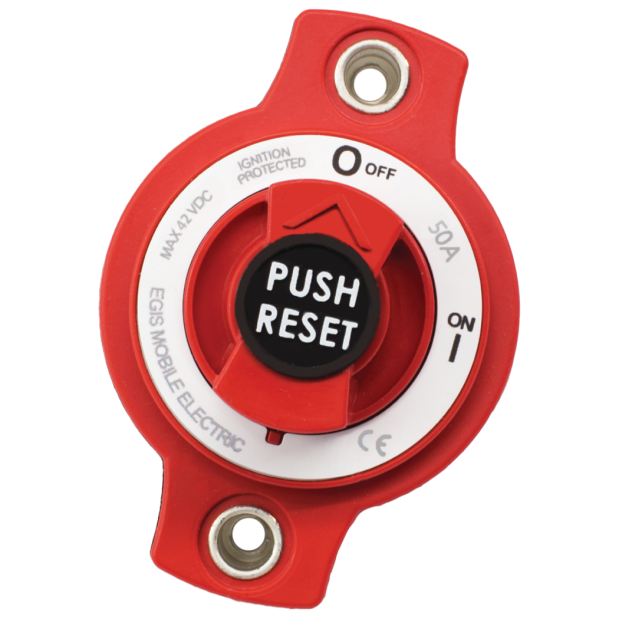

4701 Mini Circuit Breaker / Disconnect Switch - 20A
• 2 in 1 Circuit Breaker / Disconnect Switch incorporates traditional battery disconnect switching (Non-engine) and circuit protection.
• 42 Max V DC Rating easily supports 12, 24 and 36V systems. Ideal for trolling motor circuit switching applications.
• Weatherproof Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• Ignition Protected safe for installation in closed compartments with potential explosive gases
• Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
• SAE & ABYC Compliant ensures compliance to meet the needs for modern vehicle and vessel installations.
• Compact Size, fit more circuit switching / protection on a smaller panel!
• Stainless Steel Self- Locking Hardware, crrosion and vibration resistant for harsh environment applications.
Specifications
• Max Operational Voltage: 42 V DC
• Minimum Trip: Must Hold 100% of rated current at 25°C/77°F

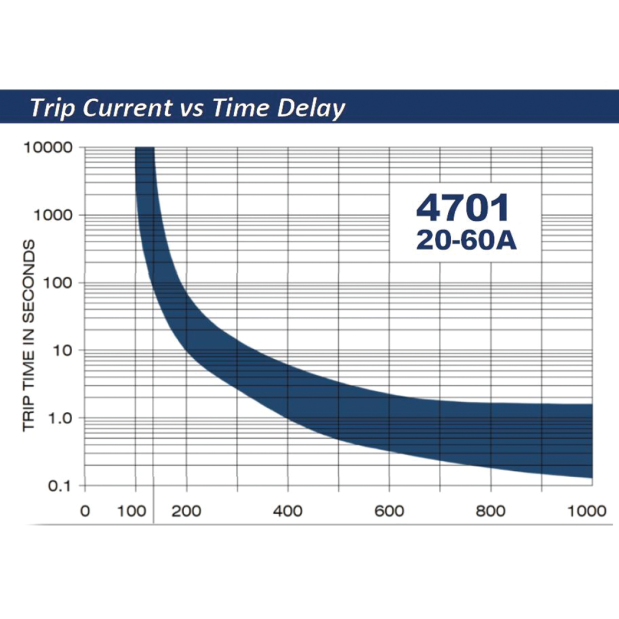

• Maximum Trip: Must Trip at 135% of rated current within 1 hour.
• Voltage Drop: Max .8V at rated current
• Dielectric Strength: 2000 VAC *UL 1077
• Endurance Cycle (Switching): 10-25A 5k, 30-45A 4k, 50-60A 3k
• Interrupt Capacity 14V DC: 3kA/U3 per ABYC (SAE J553 & UL1077*)
• Interrupt Capacity 28V DC: 1.5kA/U3 per ABYC (SAE J553 & UL1077)
• Dielectric Strength: 2000V AC
• Push-To-Reset: Trip-Free Cycling
• Max Operating Temperature: 60 C / 140 F
• Min Operating Temperature: -40 C /-40 F
• Weight: 3.75oz (90g)

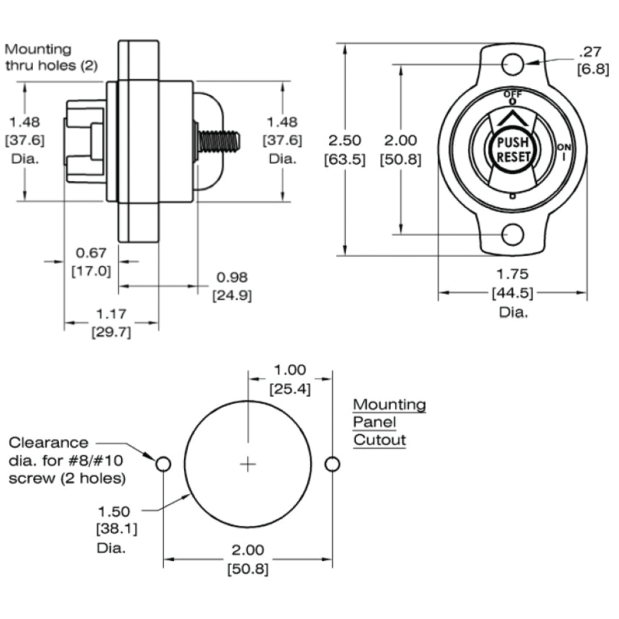

• Mounting Nut Size: #8-32

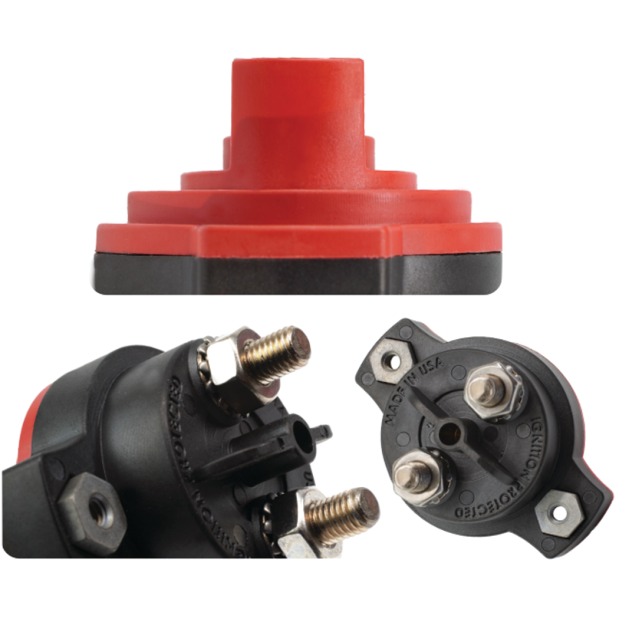

• Hardware Stud Material: Stainless Steel
• Terminal Stud Size: 1/4-28
• Max Terminal Stud Torque: 25 in-lbs (2.8 N-m)
• Cable Terminal Stud Hole Size: 1/4" (M6) Nominal
• Ignition Protection: ISO 8846, USCG, ABYC, UL1107, UL1500 and SAE J1171
• Humidity Compliance: MIL-STD-202, Method 106 (240 hrs)
• Ingress Protection: IP66 / IP67 (Flush Mount)
• Mechanical Vibration UL1107 at 100% rated current
• Mechanical Shock UL1107 at 100% rated current
• Compliance SAE J553, ABYC-E-11, UL 1500, MILSTD-202, UL 1077, SAE J1428, IEC 60529
Selected | SKU # | MFG # | Availability | rATING | Price | Quantity | |
---|---|---|---|---|---|---|---|
SKU #: 1044142 | MFG #: 4701-20 | 3 In Stock Ships immediately | 20A | $38.80 Each | |||
SKU #: 1044143 | MFG #: 4701-30 | 4 In Stock Ships immediately | 30A | $38.80 Each | |||
SKU #: 1044144 | MFG #: 4701-40 | 5 In Stock Ships immediately | 40A | $38.80 Each | |||
SKU #: 1044145 | MFG #: 4701-50 | 4 In Stock Ships immediately | 50A | $38.80 Each | |||
SKU #: 1044146 | MFG #: 4701-60 | 4 In Stock Ships immediately | 60A | $38.80 Each |
