Marine Shore Power Adapters
Marine shore power adapters are essential for connecting a boat’s electrical system to dockside power. They bridge physical differences between shore outlets and onboard inlets, allowing your boat to safely connect to available marina configurations.
What To Know
- Shore power adapters physically match dock power outlets to your boat’s electrical inlet.
- Adapters do not limit current; your boat's onboard circuit breakers protect the internal system from overcurrent.
- Different adapter styles support varied marina power configurations.
Commonly referred to as shore power adapters, converters, or marine plug adapters, these components play a critical role in everyday marina use.
Types of Shore Power Adapters
Fisheries Supply carries a wide selection of marine power adapters designed for reliability in wet, corrosive environments. Many feature watertight cable connections and durable construction intended for repeated dockside use.

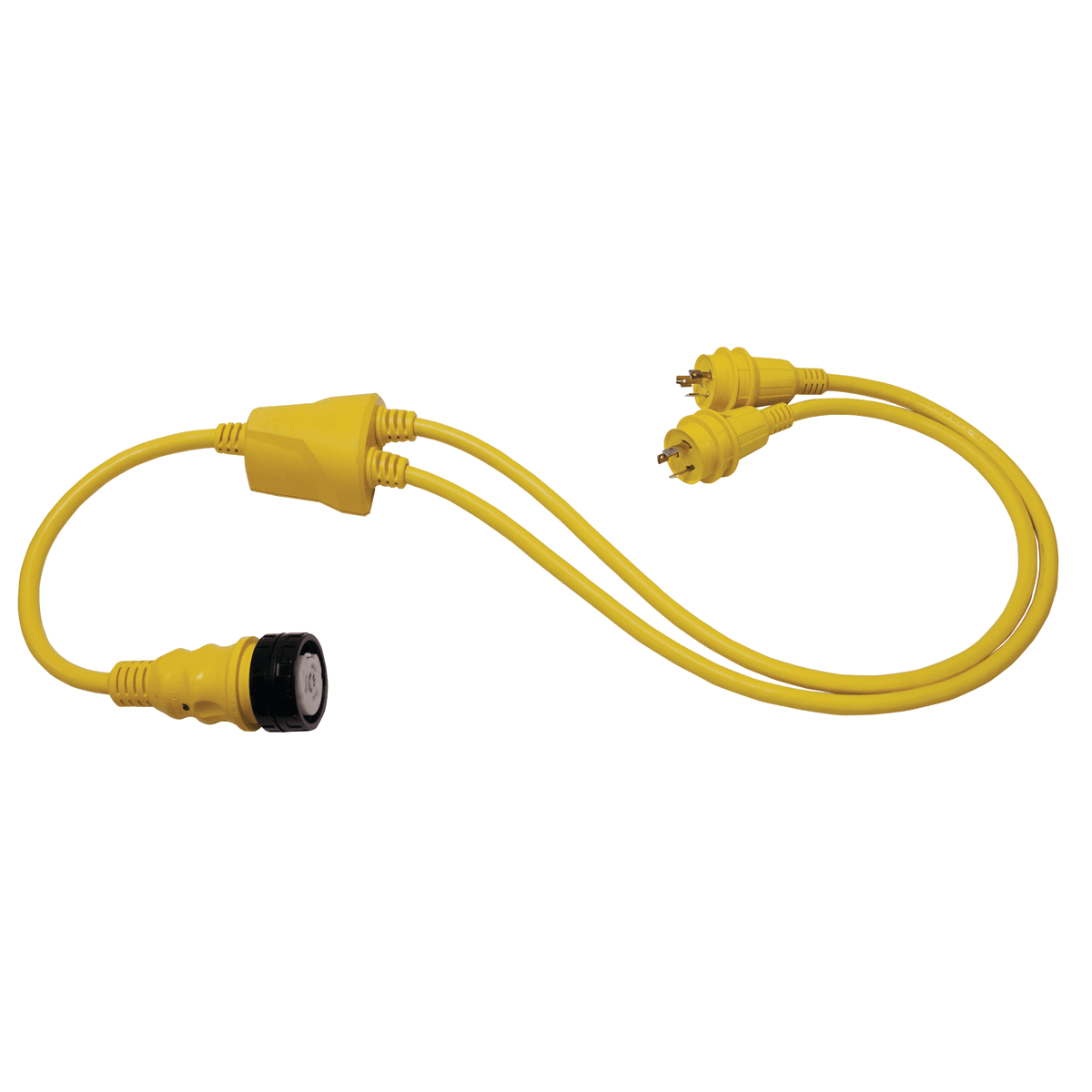

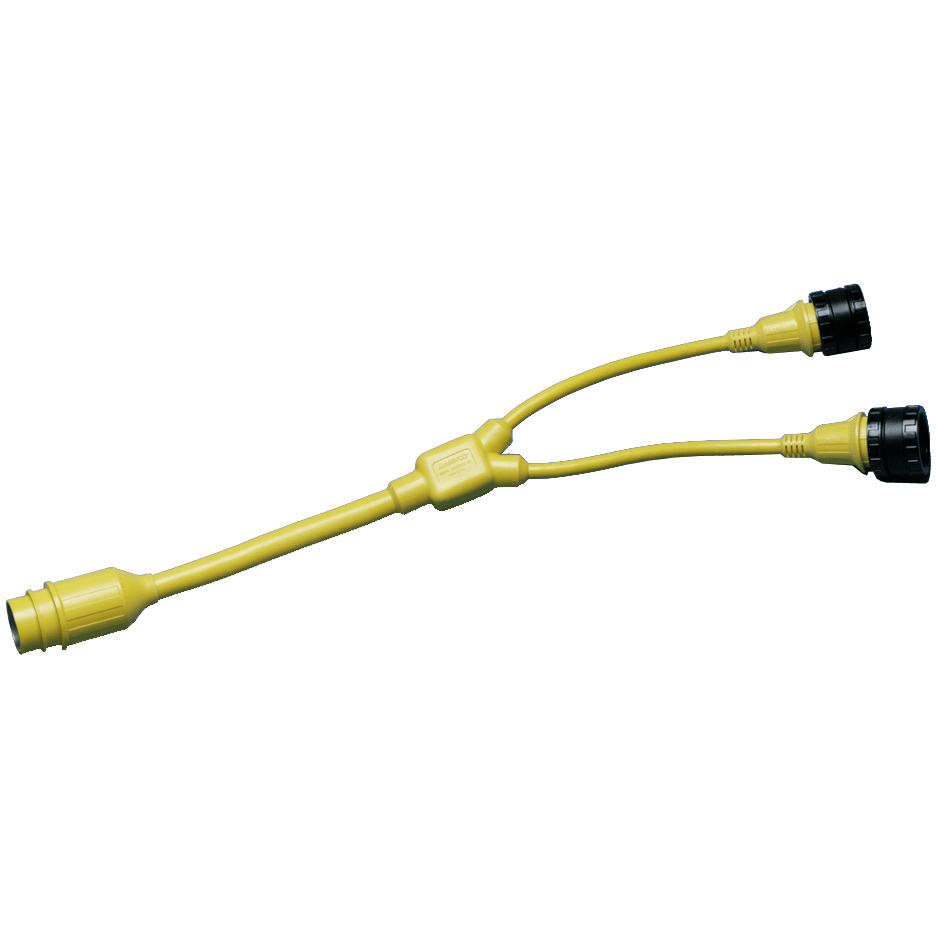

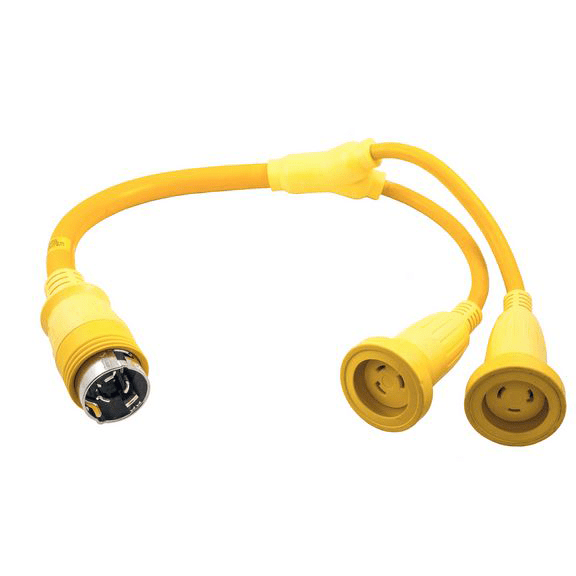

- Y Adapters: Split a single shore power source into two separate onboard inlets.

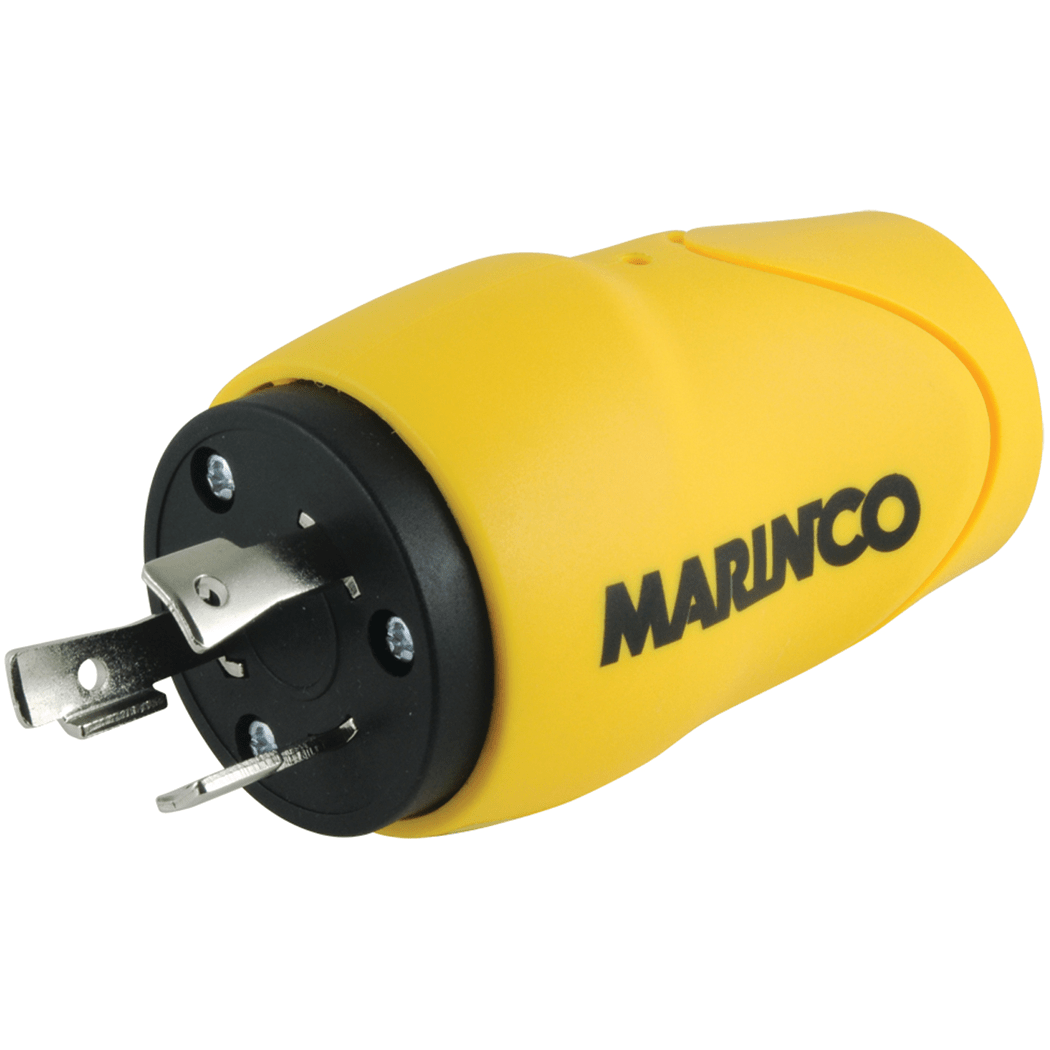

- Straight Adapters: Match a dock outlet directly to your boat’s inlet using a rigid, one-piece housing.

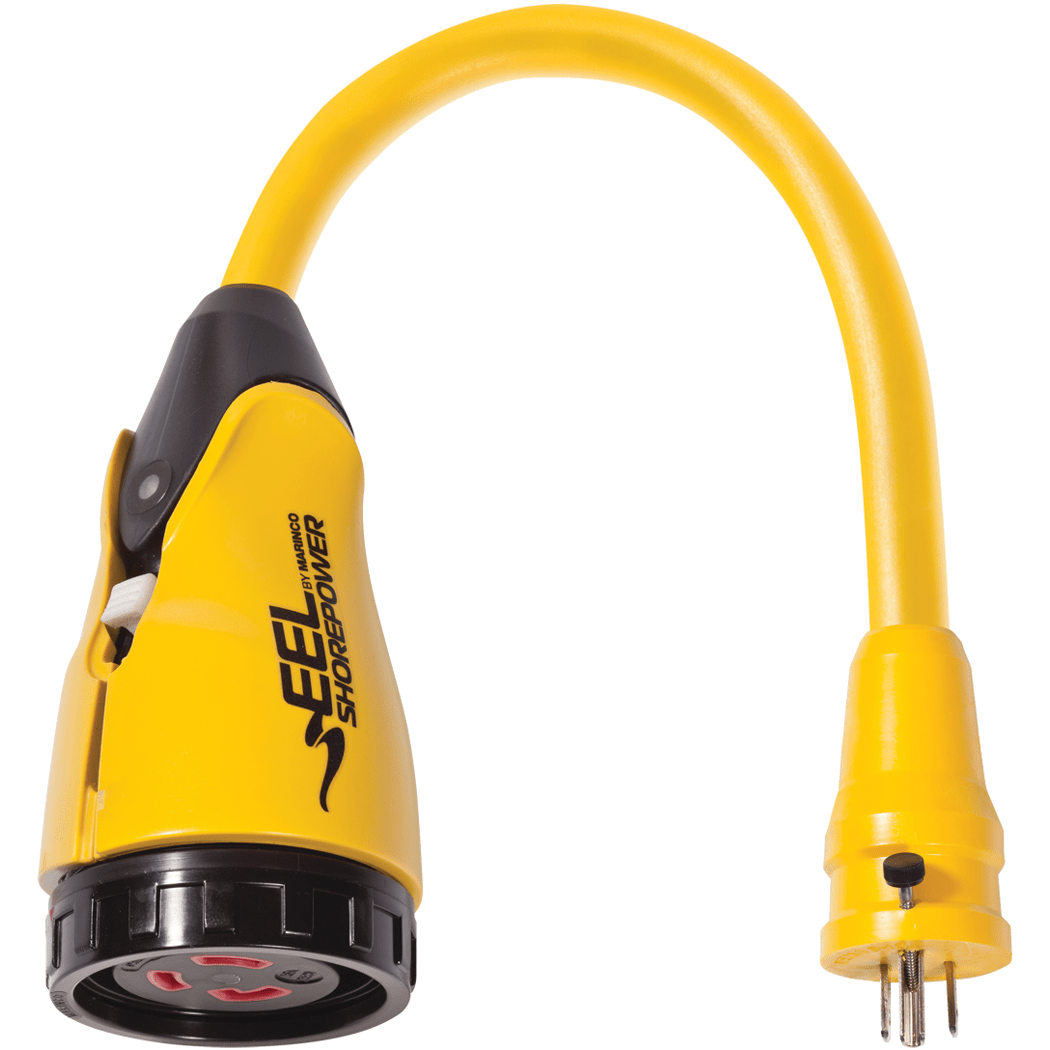

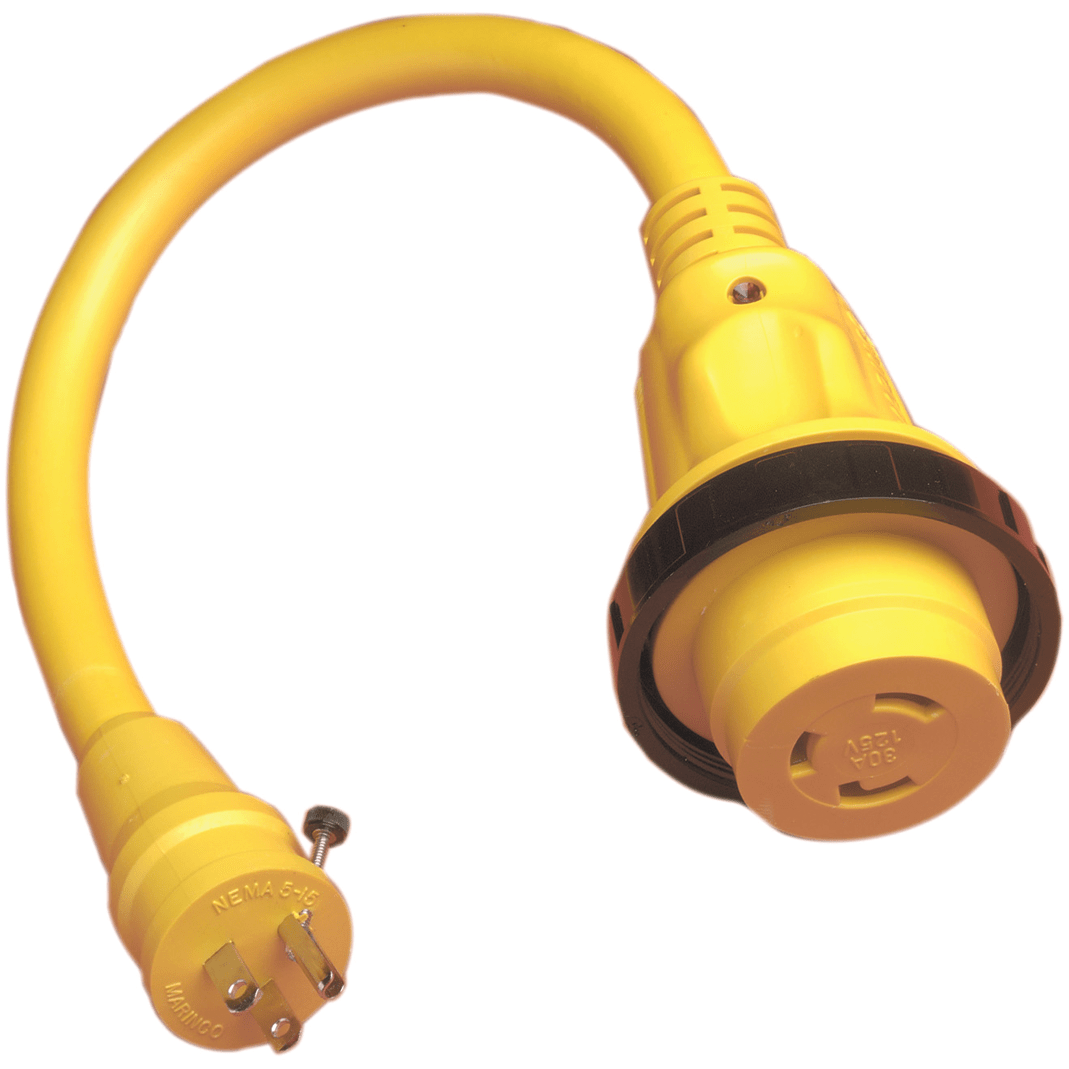

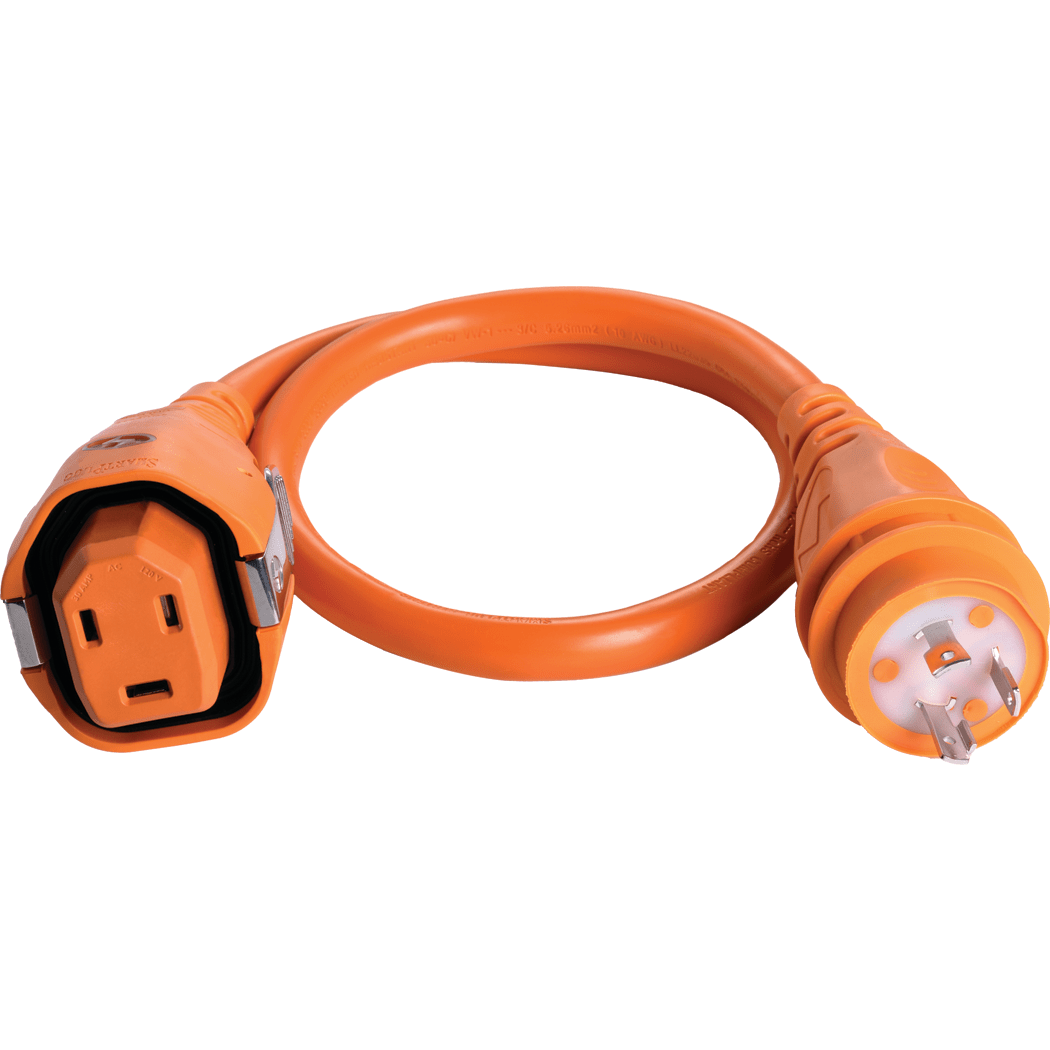

- Pigtail Adapters: Use short, flexible cables to adapt one plug configuration to another.

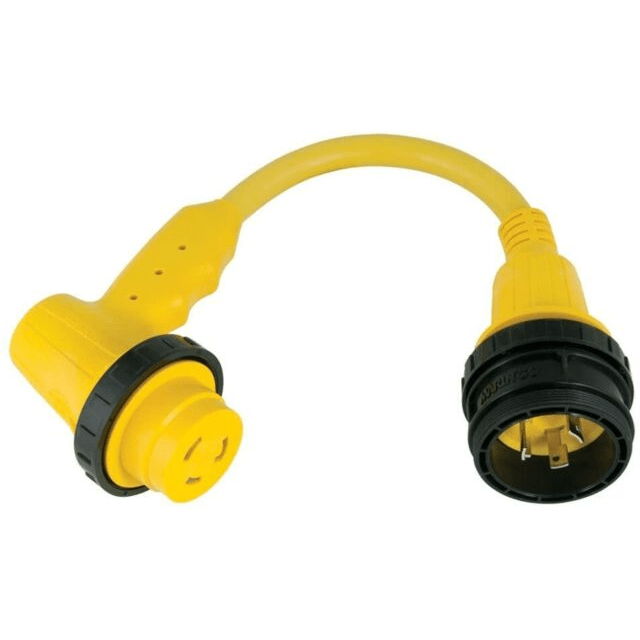

- Right-Angle Adapters: Reduce physical strain on cords and inlets in tight or awkward spaces.
Popular Shore Power Adapters
50 Amp to 30 Amp Marine Adapter
A 50 amp to 30 amp marine adapter allows a boat equipped with a 30A 120V inlet to physically connect to a 50A 125V or 125/250V dock pedestal. Because a standard adapter does not provide overcurrent protection, the shore power cable itself relies on the 50A dock breaker until the current reaches the boat's main internal 30A breaker. Safe operation requires monitoring total onboard loads to ensure compliance with ABYC E-11 standards.

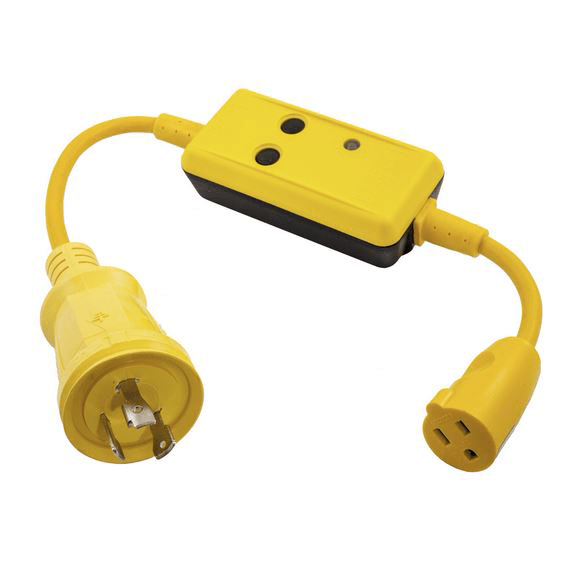

15 Amp to 30 Amp Shore Power Adapter
This adapter connects a 15 amp utility plug to a 30 amp boat inlet. It is ideal for maintaining battery chargers or running light-duty tools at the dock, but total power consumption must be limited to 15 amps to prevent tripping the shore-side breaker.
Benefits of Using Shore Power Adapters
- Improve safety by utilizing marine-grade, locking connectors designed to reduce resistance and arcing.
- Simplify connections between varying dock pedestals and boat power configurations.
- Increase flexibility when traveling between older and newer marinas with different utility power configurations.
Browse our boat power adapters inventory, or explore compatible shore power cords to complete your setup.
Frequently Asked Questions
What shore power adapter do I need for my boat?
You need a marine shore power adapter that matches the dockside outlet amperage, boatside inlet amperage, system voltage (typically 120V or 120/240V), and specific pin configuration. Common options include 30A 125V, 50A 125/250V, pigtail adapters, straight adapters, and specialized Y-adapters from trusted marine brands like Marinco, Hubbell, and SmartPlug.
Can I use a 50 amp to 30 amp shore power adapter on my boat?
A 50 amp to 30 amp marine adapter lets a boat with a 30A shore power inlet connect to a 50A dock pedestal. However, because standard passive adapters do not contain internal breakers, the shore power cord between the pedestal and the boat is exposed to up to 50 amps of current before reaching the boat's main breaker. Ensure all connections are secure, marine-rated, and properly matched for voltage to mitigate electrical hazards.
What is the difference between a pigtail adapter and a straight shore power adapter?
A pigtail shore power adapter uses a short flexible cable between connectors, while a straight adapter is a rigid one-piece plug. Pigtail adapters are highly recommended for regular dockside use because the flexible cable reduces mechanical strain on the boat's inlet and the dock pedestal. Rigid straight adapters work best in well-supported, protected spaces where physical leverage won't damage the electrical contacts.

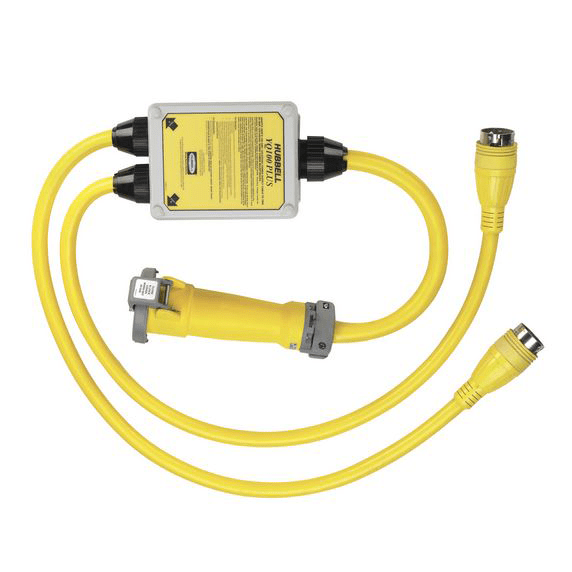

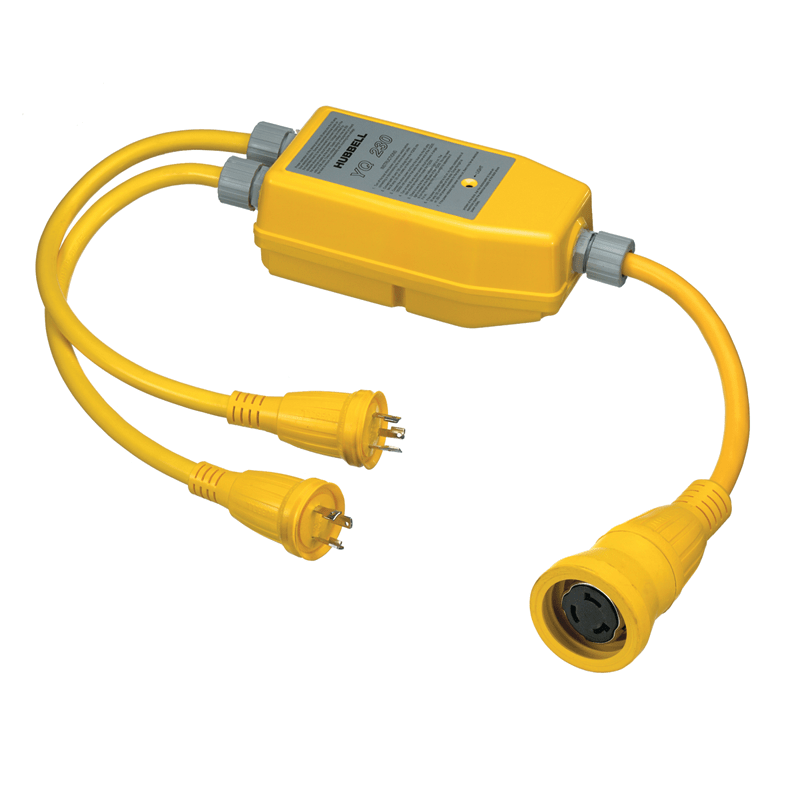

When should I use a marine Y-adapter or reverse Y-adapter?
A standard marine Y-adapter splits one high-amperage dock outlet into two separate boat inlets. A reverse Y-adapter combines two separate lower-amperage dock outlets to supply a single higher-amperage boat inlet. Per ABYC safety standards, a reverse Y-adapter must feature internal safety interlocking circuitry to ensure that if one plug is disconnected, the exposed pins do not become live with shock-inducing voltage.
Are household 15 amp adapters safe for boat shore power?
Marine-grade 15 amp to 30 amp adapters are safe for light-duty tasks such as battery charging, bilge pump operation, or running small hand tools. They are not safe for powering high-draw marine appliances like air conditioning units, water heaters, or electric stoves, as sustained heavy AC loads can overload standard household circuits and create a fire hazard.
Do Marinco, Hubbell, and SmartPlug shore power adapters have a warranty?
Warranty coverage depends on the specific manufacturer and product model. Check the individual product documentation from Marinco, Hubbell, or SmartPlug for coverage length, exclusions, and approved environmental use conditions prior to deployment in your marine electrical system.
